6 Design Considerations for Hydrodynamic Separators

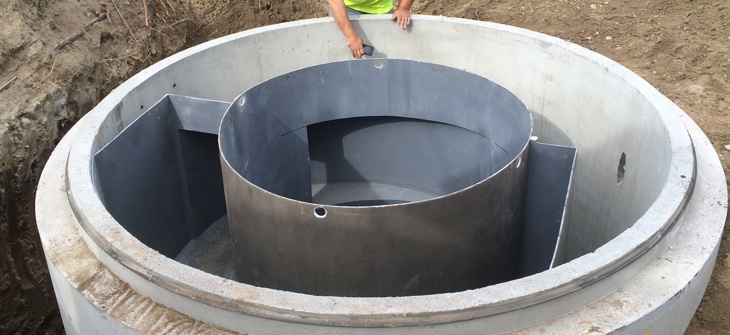

Hydrodynamic separators (HDS) are increasingly recognized as essential components in modern stormwater management systems. These devices effectively remove pollutants from stormwater runoff, helping to protect water quality and meet regulatory requirements. However, the successful implementation of HDS requires careful consideration of various design factors. This article outlines best practices for engineers to ensure the effective performance and longevity of hydrodynamic separators.
1. Site Assessment and Hydrology
A thorough site assessment is crucial before selecting a hydrodynamic separator. Understanding the area's hydrological characteristics, including rainfall patterns, soil types, impervious areas, and drainage patterns, can inform the design process. Engineers should evaluate the expected flow rates and pollutant loads to determine the appropriate size and type of HDS. Utilizing local data can aid in predicting how the separator will perform under varying conditions, ensuring it meets the site's specific needs.
2. Sizing and Configuration
Proper sizing of hydrodynamic separators is vital for their effectiveness. The separator should be sized to handle the anticipated peak flow rates while providing adequate retention time for sedimentation and pollutant removal. A common approach is to base the design on a 1-year, 24-hour storm event, but engineers should also consider larger events to avoid bypass situations. Oversizing can lead to inefficient operation while undersizing can result in flooding and reduced pollutant removal efficiency.
Engineers must also decide whether the HDS system should be online or offline. Online systems allow storm events greater than the design storm to bypass the treatment unit, eliminating the need for a separate bypass structure. However, local regulations, peak flow management, and integrations with other systems may require an offline system.
3. Selection of Separator Type
All hydrodynamic separators are not the same. Engineers should select an HDS type that aligns with the project's goals. For example, some separators, like Contech’s Cascade Separator, are designed primarily for sediment removal. While most HDS systems will focus on sediment removal, others, like Contech’s CDS and DSBB, have the added benefit of removing and retaining trash and debris. Understanding the target pollutants is essential for selecting the right technology.
4. Maintenance Accessibility
Hydrodynamic separators require regular inspection and cleaning to ensure they function optimally and to identify proper maintenance intervals for a given site. During the design phase, engineers should prioritize providing adequate access points for vacuum trucks, ensuring that the separator’s design allows for easy removal of accumulated sediments and debris. It is important to understand that maintenance intervals depend on total pollutant loads entering a system, so not all unit types and sizes will have the same maintenance interval.
5. Integration with Other Systems
Hydrodynamic separators should not function in isolation. Integrating them with other stormwater management practices, such as green infrastructure or detention basins, can enhance overall performance. For example, combining HDS with bioretention areas can remove more pollutants and improve water quality. Engineers should consider how the separator fits into the broader stormwater management plan and ensure seamless integration with existing or planned infrastructure. HDS systems are often placed upstream of other systems because they generally target coarser particle sizes, trash and debris.
6. Regulatory Compliance
Finally, understanding local regulations and standards is essential when designing hydrodynamic separators. Many jurisdictions have specific requirements regarding pollutant removal efficiencies, maintenance practices, and monitoring protocols. Some areas have approved product lists where only HDS systems on the approved list can be used within the jurisdiction. Engineers must stay informed about these regulations to ensure their designs comply.
By following these best practices, civil engineers can ensure that their HDS installations are not only efficient in removing pollutants but also sustainable and cost-effective in the long term. Ultimately, thoughtful design and proactive maintenance will contribute to improved water quality and the resilience of urban water systems.
